Build-up

All stands are based on a 130 x 130 cm modular grid. The stand walls consist of an aluminium frame filled out with hard white melamine.The measure: Height 230 cm x width 130 cm.

The front frieze/crossbar are made from aluminium. They are available in full-module lenghts and cannot exceed a length of four modules. Intersecting crossbars will result in a height difference of 10 cm.

1 module = 130 cm, 2 modules = 260 cm, 3 modules = 390 cm, 4 modules = 520 cm.

Snit af overlægger



Standopbygning

By means of special fittings it is possible to mount your own walls on the outside of the stand walls. The fittings can be sited high or low.

  • Photo no.

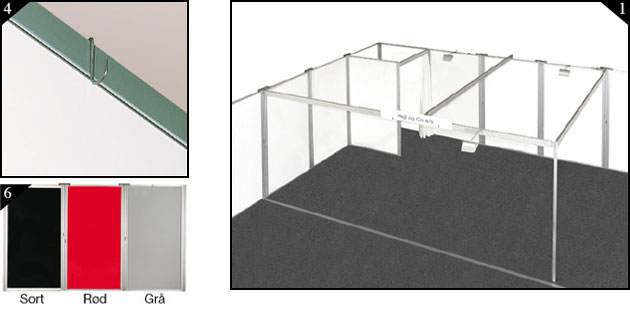

  • 1. Standsystem
  • 2. Cut of frieze/crossbar

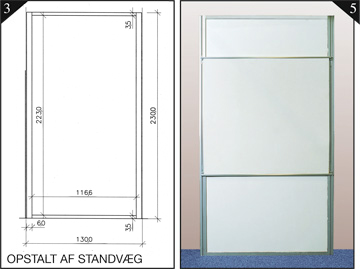

  • 3. Wall measurements
  • 4. Hook – can be placed on the wall for hanging articles
  • 5. Stand wall/module
  • 6. Alternative colours on stand walls

Standvæg
